Engineering data
Specifications
الأرقام مأخوذة من كتيّب BOB-LIFT لهذه المجموعة. أكّد المواصفات النهائية مع فريقنا قبل الطلب.
قارن مجموعة رافعات الأخشاب كاملةرافعات الأخشاب
ZM65: طول الذراع 7600MM – رافعة للأخشاب
- Specification Status
- Verified from source
Product details

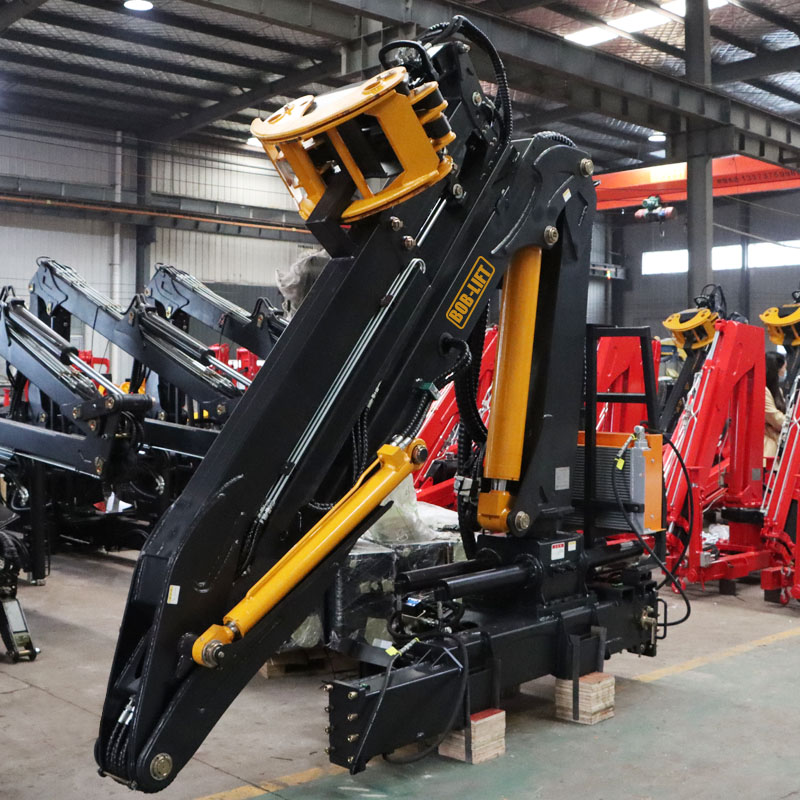

ZM65: طول الذراع 7600MM – رافعة للأخشاب
ZM65 هي رافعة أخشاب بسعة 700 kg وعزم رفع أقصى يبلغ 6.5 t·m. تعمل بمصدر طاقة موصى به بقدرة 18 kW، مع تدفق هيدروليكي يبلغ 45 L/min عند 19 MPa، ويبلغ وزنها 1280 kg، وتوفر دورانًا بزاوية 380°.
الشهادة
تحمل سلسلة ZM65 شهادة مطابقة CE بموجب توجيه الآلات الأوروبي 2006/42/EC.
الأسئلة الشائعة
أسئلة حول ZM65: طول الذراع 7600MM – رافعة للأخشاب
الطلب والخدمة
01 Which configuration should we choose for this model?
Send the load, working radius, lifting height, site access and destination. The engineering team will confirm whether the standard configuration fits before quotation.
02 Can the crane be customized for our working conditions?
BOB-LIFT can adjust configuration around lifting radius, site access, operation scenario and destination requirements.
03 What is the typical delivery time?
Lead time depends on the configuration, order quantity and destination. We confirm it in writing with your quotation.
04 What export documents are provided?
Each order ships with a commercial invoice, packing list and bill of lading, plus the product documents required for the confirmed order.
05 Do you provide installation and operation training?
We can mount the crane on your truck before shipping. For installation on site, our team provides installation guidance and remote technical support, and our Service & Operation page has short videos on checks before and during lifting.
06 What after-sales support is available?
Cranes carry a 12-month warranty. Send the model, serial number and a photo or video of the issue; our team guides the repair and ships the parts.
